Water purification complex
Filters for water purification complex - ones of the most popular among the owners of country houses and cottages, as they require water treatment of various contaminants such as iron, manganese, hydrogen sulfide, hardness, etc.
Through the installation of this type of equipment it is possible to use purified from the majority of impurities water for household purposes and edible.

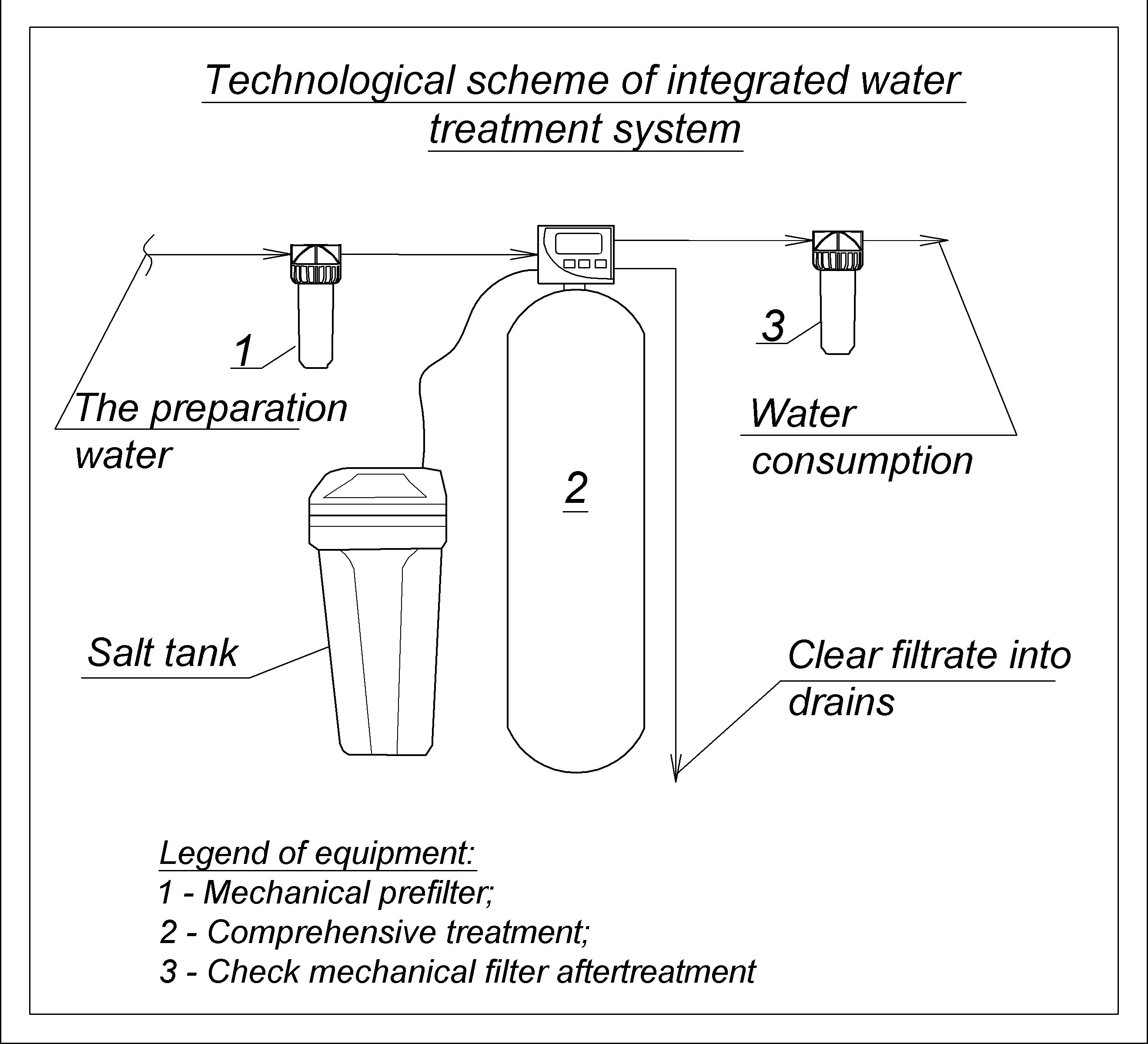

Each unit consists of filter housing, the control valve, drainage and distribution system, the filter material, the salt tank.
As the filter material may be used thefollowing:
- The filter filling Filtro Smart™, Purolox company, Great Britain. This filling is used to reduce water hardness, level of iron and manganese, independently of pH and mineral composition and natural organics. Control valve Clack WSCI, production Clack Corporation, US, allows washing both - in time and in volume of water through the plant. Regeneration of the equipment is carried out with a solution of salt tableting.
- ECOMIX® A - the most popular type of filter material, qualitatively decreases hardness, eliminates iron, manganese, aluminum, ammonium, independently of the pH level of raw water, its anion composition and presence of chlorine.
Advantages
- Operating efficiency - regeneration by salt.
- Easy maintenance - you only need to fill salt in the tank.
- Full automation - automatic flushing at a convenient time for you.
- The durability of work - life of the staff filling is 8-10 years.
- Quality guarantee - all components are produced by internationally famous companies.
Detailed description
| Unit size | Productivity, m3 / h | Loading staff, l | Dimensions ,mm | Salt tank, l | |
| 0935 | 0,7 | 0,9 | 16 | 228 х 897 | 70 |
| 1035 | 1,0 | 1,2 | 20 | 257 х 897 | 70 |
| 1044 | 1,1 | 1,4 | 25 | 257 х 1130 | 70 |
| 1054 | 1,4 | 1,8 | 37 | 257 х 1390 | 100 |
| 1252 | 1,8 | 2,3 | 45 | 308 х 1342 | 100 |
| 1354 | 2,3 | 3,0 | 60 | 334 х 1400 | 145 |
| 1465 | 3,0 | 4,0 | 80 | 360 х 1679 | 145 |
| 1665 | 3,8 | 5,0 | 100 | 410 х 1678 | 200 |
| 1865 | 5,3 | 7,0 | 130 | 480 х 2030 | 200 |
| 2162 | 6,0 | 8,0 | 165 | 544 х 2063 | 350 |
Possible parameters of water at the entrance:
- hardness — up to 15 mg/l
- iron – up to 10mg/l
- manganese - up to 2 mg/l
- total salt content – up to 3000 mg/l
Key figures after the purification of water, not more than:
- hardness — 1-2 mg/l
- iron – <0,1 mg/l
- manganese – <0,05 mg/l
Additional installation of water treatment equipment
- To improve the taste of water and the water-system grade possible additional filters on input and output.
- A main inlet filter protects the valve and filter loading from outside particles (sand, rust etc).
- A main filter at the exit due to coal cartridge corrects the taste of water, and protects the water system from the smallest particles.
- You can also install UV water disinfection unit produced by Sterilight company, Canada.
