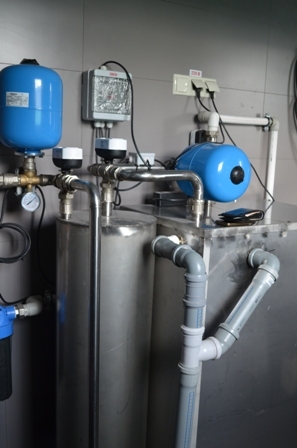

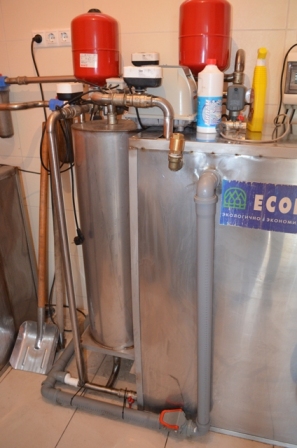

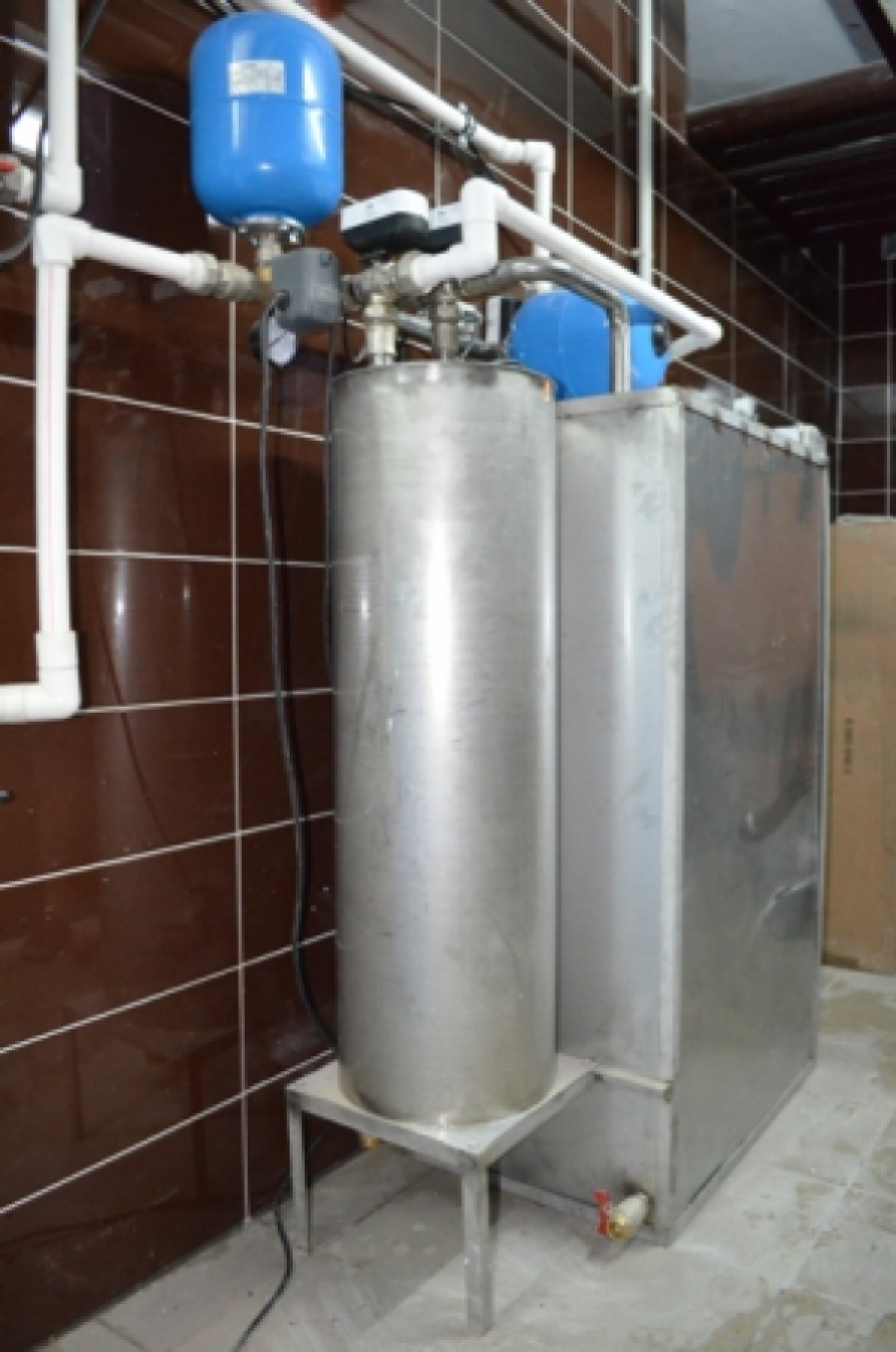

FSS Katyusha

Filter - separation system "Katyusha" is the original equipment developed and patented by "Ecoprom" company experts. FSS "Katyusha" was designed for water purification after the car wash and for circulating water supply (water recycling).


FSS "Katyusha"is the final part of highly complex wastewater treatment.

  • Environmentally friendly and safe technology.
  • Minimum size.
  • Stainless steel equipment made.
  • Cheap and easy to use.
  • Does not require additional investments in the operation.
  • Durable self-cleaning filters.
  • Regeneration of the filter passes through backwash.
  • Our equipment provides users with more than 20 years.
  • Invented and made in Ukraine.
Detailed description

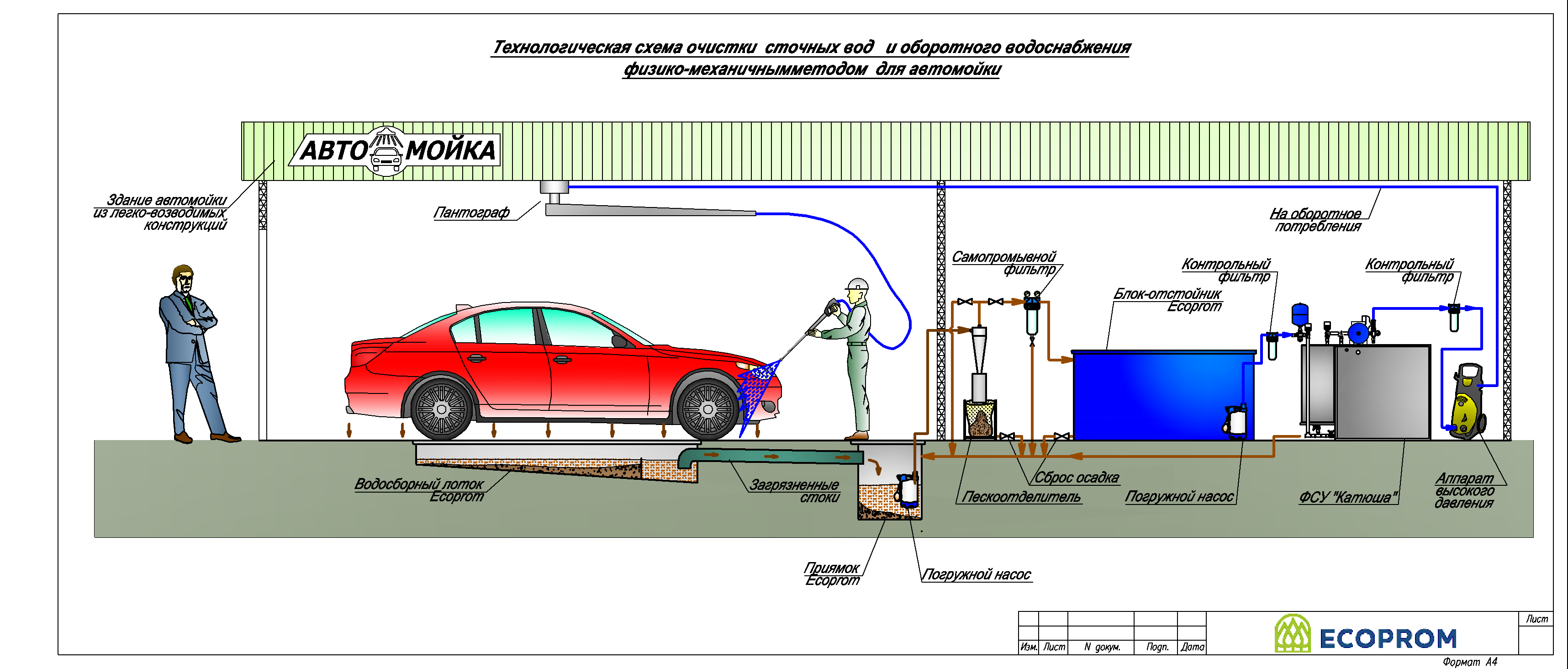

The principle of operation of the equipment:


From the tray above where cars are washing, waste water enters the pit, and then goes with the help of a submersible pump to the ground settling.


The ground-settler unit retained suspension, as well as major oil floating up, they are accumulated and disposed .


From the settler unit using water is pumped to FSS "Katyusha". At the entrance to FSS "Katyusha" the main filter is set for pretreatment.  Then the water enters the body of fine filters. The filter used for the water purification has a high ability of detention of fine particles of petroleum products.


When passing through the water separator, aeration takes place, and as a result, the active selection of synthetic surfactants (shampoo - synthetic surfactants as foam) are accumulated in a special container. Aerator is placed in the tank with reserve of purified water.


Also in the tank is a pump for supplying water at high pressure devices. The same pump used for washing fine filter. The pump is automatically activated when high pressure devices switch on.


All pumps in the "Ecoprom" purification and water recycling system equipped with protection against "dry run" and work in automatic mode.


The process of regeneration of the fine filter is automatic, eliminating the participation of staff in the unit work.


Name Productivity m3/h Power kW / Voltage Dimensions, mm Connection Input/Output, inch Material
FSS "Katyusha 1.2А" 1,2 1,0 / 220 1100x500x1550 3/4 - 3/4 Stainless steel AISI 304
FSS "Katyusha 2.5А" 2,5 1,0 / 220 1400x500x1550 1" - 1"
FSS "Katyusha 3.6А" 3,6 1,34 / 220 1800x500x1550 1" 1/4 - 1" 1/4
