Softening water
Filters for softening water are used for effective removal of hardness salts that in the water. Signs of the presence of water hardness salts can be scale, which is formed in a teapot. Depending on the water analysis results, correct installation model needs to be chosen.

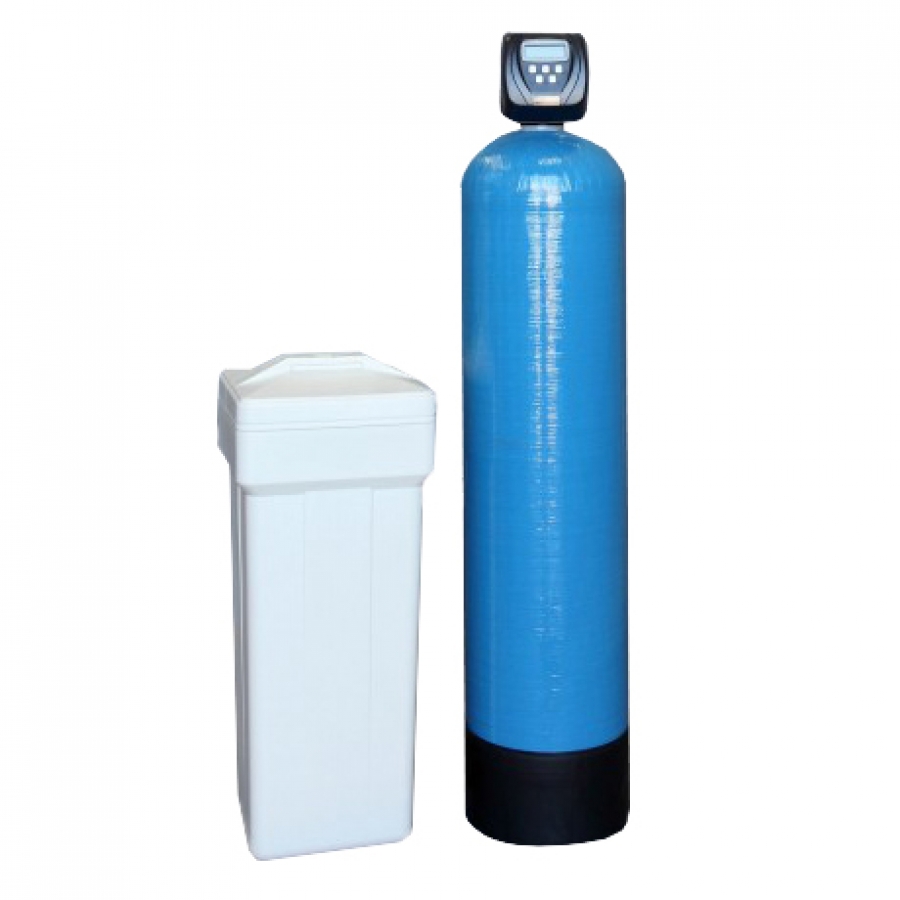

Softening water equipment Сlack.
Installations of water softening Clack were designed for use in private water treatment systems, in cases when there it is no iron in the original water, and excessive hardness presents. Each unit consists of filter housing, the control valve, drainage and distribution system, the filter material, the salt tank. As a filter material ion exchange resin is used, Dowex, the production company DOW, US. This download has been specially designed for the food industry, however, found broad use in household softener systems, thanks to its chemical and physical stability.
The secure control (main) valve Clack WSCI, produced by Clack Corporation, USA, is used here; it allows washing both - in time and in volume of water. Regeneration of the Installations of water softening is carried out with a solution of salt tableting.
Unit size | Productivity, m3 / h | Loading staff, l | Dimensions ,mm Ø x h | Salt tank, l |
0935 | 0,7-0,9 | 20 | 228 х 897 | 70 |
1035 | 1,0-1,2 | 30 | 257 х 897 | 70 |
1044 | 1,1-1,4 | 35 | 257 х 1130 | 70 |
1054 | 1,4-1,8 | 45 | 257 х 1390 | 100 |
1252 | 1,8-2,3 | 60 | 308 х 1342 | 100 |
1354 | 2,3-3,0 | 75 | 334 х 1400 | 145 |
1465 | 3,0-4,0 | 100 | 360 х 1679 | 145 |
1665 | 3,8-5,0 | 125 | 410 х 1678 | 200 |
1865 | 5,3-7,0 | 160 | 480 x 2030 | 200 |
2162 | 6,0-8,0 | 210 | 544 х 2063 | 350 |
- Softening water equipment is cheaper than equipment for complex purification.
- Cheap exploitation - regeneration by salt.
- Easy maintenance - you only need to fill salt in the tank.
- Full automation - automatic flushing at a convenient time for you.
- The durability of work of the staff filling is 8-10 years.
- High quality - all components are produced by well known companies.
Possible requirements and parameters of water at the entrance:
- hardness — up to 15 mg/l
- feculence — up to 6 mg/l
- slurry - 8 mg/l
- absence of the oxidized iron in water (Fe3+)
- absence of dissolved oxygen in water
Key figures after the purification of water
- hardness — 1-2 mg/l
Possible additional installation of equipment for water softening.
Water softening systems can be equipped with additional filters and UV units for water disinfection.
